AT22120-RS / AT22120 -LR
FEATURES:
  • Small dimensions (12.0 x 12.0)
  • Mechanical life: min. 1 x 10 5 cycles
  • Good feeling

SPECIFICATION

Contact Rating: 50 mA @ 12VDC;
Electrical life: 100,000 cycles
Mechanical life : 100,000 cycles min
Position Travel : 0.35 ± 0.1 mm
Insulation Resistance : > 100M Ω DC100V
Withstand Voltage : AC250V 1 minute
Contact Resistance : < 100m Ω
Ambient Temper. : -25 °C to 70 °C
Operating Force : 180 ± 30 gf ; 250 ± 50 gf
Soldering Process : Hand soldering : Use a soldering iron of 30 watts,controlled at 380 °C approximately 3 seconds while applying solder.
Wave soldering: When applying wave soldering, the peak temperature of the wave Oven should be set to 260 °C max. Condition for soldering (Wave & Non-washable Type) Temperature Profile: (Figure 1)
Reflow soldering: When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250 °C max. Condition for soldering (Reflow & Non-washable Type) Temperature Profile: (Figure 2)


Wave soldering (Figure 1)

Rellow soldering (Figure 2)

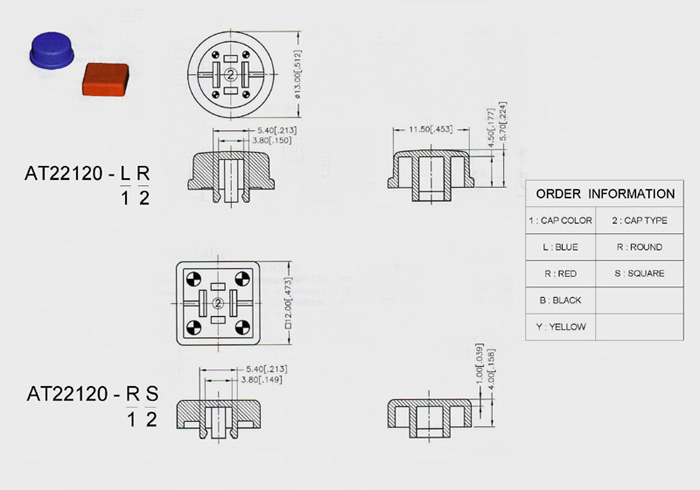

DIMENSION DRAWING

PACKING EXPLANATION :

60,000 PCS for one big box(1,000 PCS for one bag, 10bags for one small carton,6 small cartons for one big box.)
Canal packaging : 80 switches shall be packed in a strip;Ten(10) strips at maximum shall be packed in a bag.
