Push Switch BS800L/N-1
FEATURES:
  • A push switch ( 8.0 x 8.0 x 13.5mm )
  • The double sliding contact structures high reliability

SPECIFICATION

Mechanical life: 100,000 cycles min
Electrical life: 10,000 cycles min
Contact Rating: 0.1Amps @30 VDC
Insulation Resistance: >100MΩ DC250V
Withstand Voltage: AC250V 1 minute
Contact Resistance: <50mΩ
Ambient Humidity: <85%RH
Operating Temper.: -25°C to 65°C
Operating Force: 160±80gf
Soldering process: Hand Soldering: Use a soldering iron of 30 wattsĦAcontrolled at 380°C approximately 3 seconds while applying solder

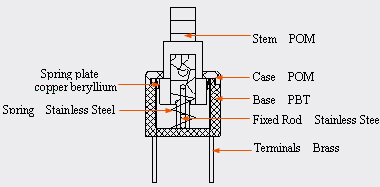

MATERIALS

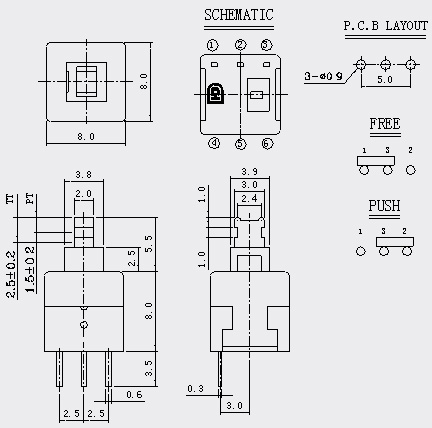

DIMENSION DRAWING
