Push Switch BS850L/N-BR

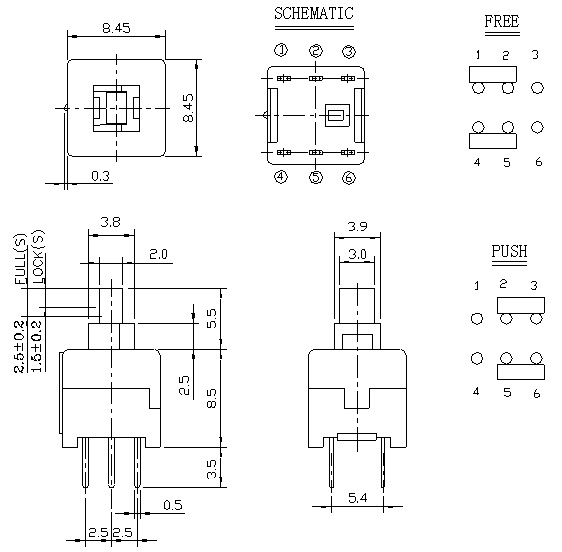

  • A miniaturized push button switch(8.5x8.5x14; 8.5x8.5x22.5; or 8.45x8.45x14; 8.45x8.45x22.5)
  • The double sliding contact structures high reliability


Mechanical life: 100,000 cycles min
Electrical life: 10,000 cycles min
Contact Rating: 0.3Amps/0.5 Amps @30 VDC/16 VDC
Insulation Resistance: >100MΩ DC250V
Withstand Voltage: AC250V 1 minute
Contact Resistance: <50mΩ
Ambient Humidity: <85%RH
Operating Temper.: -25°C to 65°C
Operating Force: 200±80gf
Soldering process: Hand Soldering: Use a soldering iron of 30 watts, controlled at 380°C approximately 3 seconds while applying solder

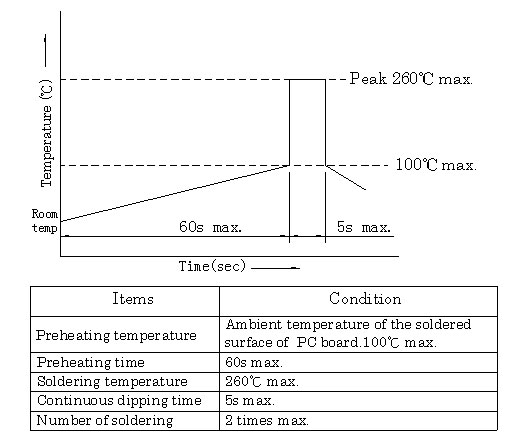

Wave soldering: When applying wave soldering, the plastic using PA6T. the peak temperature of the wave Oven should be set to 260°Cmax. Condition for soldering (Reflow & Non-washable Type) Temperature Profile:

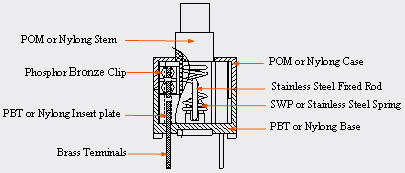

Stem: High Temperature NYLONG (UL94 V-0) or POM
Case: High Temperature NYLONG (UL94 V-0) or POM
Base: High Temperature PBT or NYLONG (UL94 V-0)
Insert plate: High Temperature PBT or NYLONG (UL94 V-0)
Terminals: Brass(Plating silver)
Clip: Phosphor Bronze
Spring: SWP or Stainless Steerl
Fixed Rod: Stainless Steel
