Micro Switch DM3-03P

Features:

  • Small dimensions, just 12.8 x 5.8 x 6.5mm ( 0.504" x 0.228" x 0.256" )
  • Mechanical life : min. 5 x 10cycles
  • Good feeling and more actuators are applied

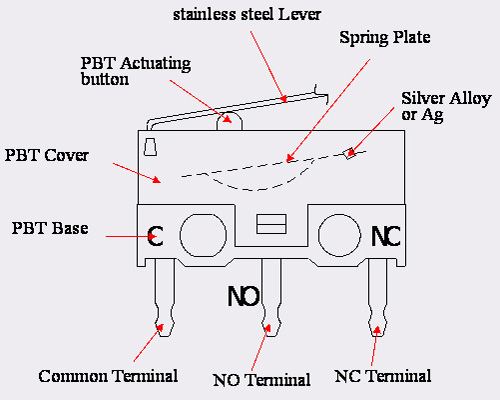

Materials

Switch cover: High Temperature PBT (UL94 V-0)
Switch Base: High Temperature PBT (UL94 V-0)
Actuating Button: High Temperature PBT (UL94 V-0)
Terminals: Brass(Plating silver)
Contacts: Ag or Silver Alloy or plating Gold
Spring Plate: Be Cu Alloy
Auxiliary Actuator: Stainless Steel

Actuator and Operating Force Chart

ACTUATOR
OPERATING FORCE /RETURN FORCE(gf)
FP(mm)
OP(mm)

03

10/5

20/10

25/10

30/10

12.0 ± 0.8

9.5 ± 0.8

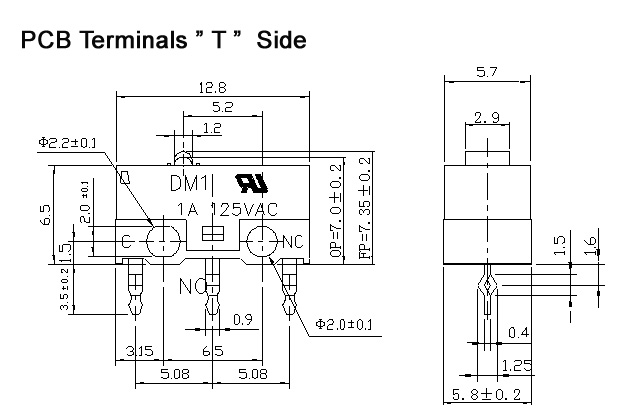

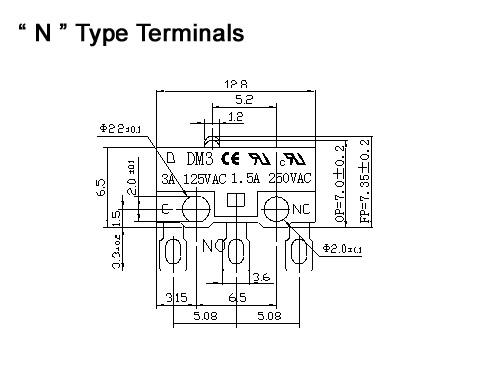

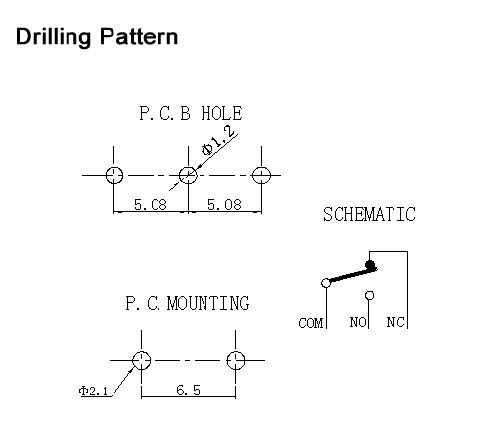

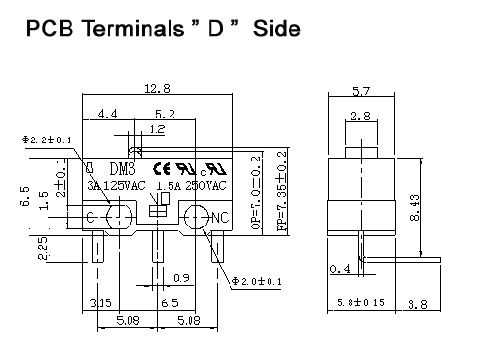

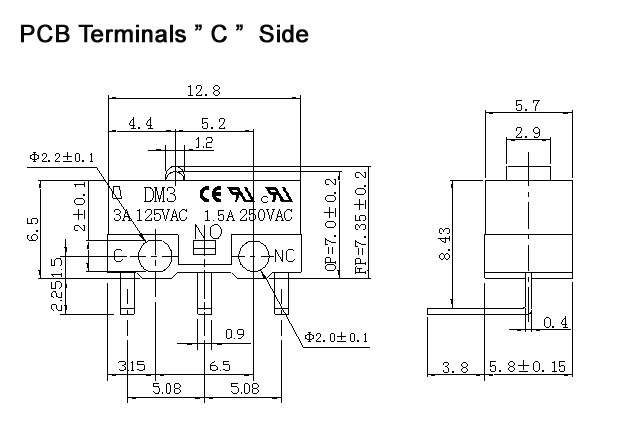

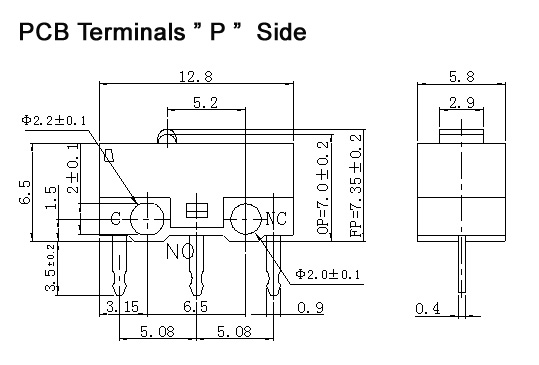

Terminal Options mm( Inches)






Packing Explanation:

"P" or "T" or "N" type terminal:
24,000 PCS for one big box (1,000 PCS for one bag, 4bags for one small carton,6small cartons for one big box.)

"C" or "D" type terminal:
24,000 PCS for one big box(200 PCS for one small plastic box, 20 small plastic boxes for one small carton, 6small cartons for one big box.)

"C" or "D" type terminal with actuator:
14,400 PCS or 9,600 PCS for one big box(120 PCS or 80 PCS for one small plastic box, 20 small plastic boxes for one small carton,6small cartons for one big box.)
