TACT Switch DS-05T
FEATURES:
  • Small dimensions
  • Mechanical life: min. 1 x 105 cycles
  • Good feeling

SPECIFICATION

Contact Rating: 50mA @ 30VDC
Electrical life: 100,000 cycles
Mechanical life: 100,000 cycles min
Insulation Resistance: > 100M Ω DC250V
Withstand Voltage: AC600V 1 minute
Contact Resistance: < 100m Ω
Ambient Temper.: -25 °C to 70 °C
Operating Force:see chart
Soldering Process: Hand soldering, Use a soldering iron of 30 watts, controlled at 380 °C approximately 3 seconds while applying solder. Wave soldering: When applying wave soldering, The plastic using PA6T(HTN), the peak temperature of the wave Oven should be set to 260 °C max. Condition for soldering (Wave & Non-washable Type)

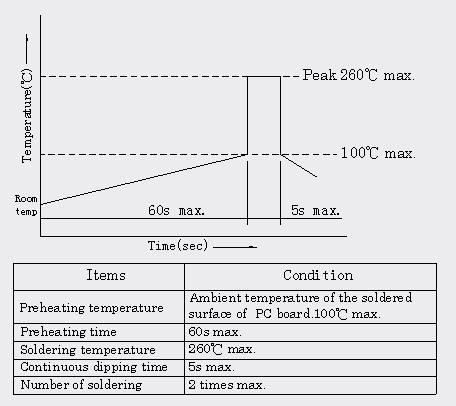

Temperature Profile:

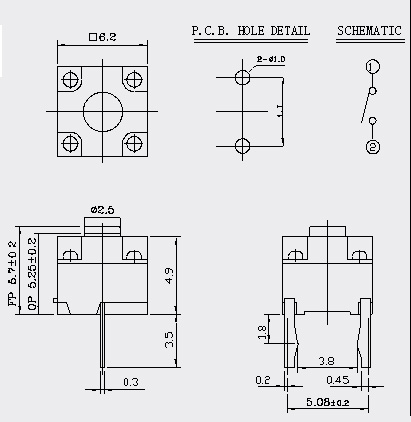

Actuating Button Options:

PACKING EXPLANATION :

24,000 PCS for one big box(1,000 PCS for one bag, 4bags for one small carton,6 small cartons for one big box.)
