HOME > Product Category > Tact Switch > DS027-05TJ-70

Quantity:
TACT Switch DS027-05TJ-70
FEATURES:
  • Small dimensions
  • Mechanical life: min. 3 x 106 cycles
  • Good feeling

SPECIFICATION

Contact Rating: 50 mA @ 30VDC
Electrical life: 3,000,000 cycles
Mechanical life: 3,000,000 cycles min
Insulation Resistance: >100MΩ DC250V
Withstand Voltage: AC600V 1 minute
Contact Resistance: <100mΩ
Ambient Temper.: -25°C to 70°C
Operating Force: 70±20 gf
Soldering Process: Hand soldering,Use a soldering iron of 30 watts,controlled at 380°C approximately 3 seconds while applying solder.

MATERIALS

Switch cover: Nylon66 (UL94 V-0)
Color: Black
Switch Base: Nylon46 (UL94 V-0);Color:Black
Actuating Button: Nylon66 (UL94 V-0)
Color: Black
Terminals: Brass(Plating silver)
Contact Disc: SUS301
Thimble: Rubber

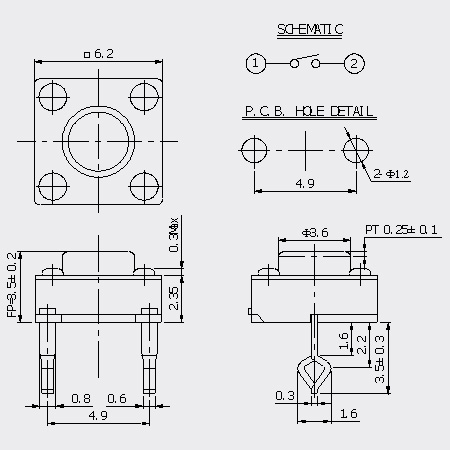

DIMENSIONS

PACKING EXPLANATION :

24,000 PCS for one big box(1,000 PCS for one bag, 4bags for one small carton,6small cartons for one big box.)
