Micro Switch DS030-00C-70


  • Small dimensions
  • Mechaanical life: min. 1x 10 cycles
  • Good feeling


Switch cover: Nylon
Switch Base: Nylon
Actuating Button: Nylon
Terminals: Brass (Plating silver)
Spring Plate: Becualloy
Contact: Ag


Contact Rating: 0.1A @ 48VDC; 0.1A@125VAC
Electrical life: 1,000,000 cycles
Mechaanical life: 1,000,000 cycles min
Insulation Resistance: > 100MΩ DC250V
Withstand Voltage: AC250V 1 minute
Contact Resistance: < 300mΩ
Ambient Temper.: -25°C to 70°C
Operating Force: 70gf
Soldering Process: Hand soldering: Use a soldering iron of 30 watts,controlled at 360°C approximately 3 seconds while applying solder.
Wave soldering: When applying wave soldering, the peak temperature of the wave Oven should be set to 260°C max. Condition for soldering (Wave & Non-washable Type) Temperature Profile: (Figure 1)

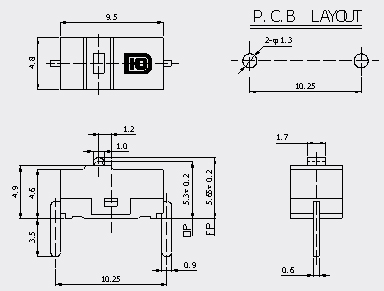

Dimension Drawing (mm)

Packing Explanation:

24,000 PCS for one big box (1,000 PCS for one bag, 4 bags for one small box, 6 small boxes for one big box.)
