Micro Switch DS030B-00P-70

Features:

  • Small dimensions
  • Mechanical life: min. 1x 10 cycles
  • Good feeling.

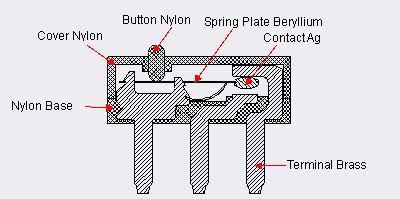

Materianls



Switch cover: Nylon
Color: Black
Switch Base: Nylon
Color: Black
Actuating Button: Nylon
Color: Black
Terminals: Brass (Plating silver)
Spring Plate: Beryllium
Contact: Ag

Specifications
Contact Rating: 6VDC 300mA
Electrical life: 50,000 cycles
Mechanical life : 100,000cycles min
Insulation Resistance : > 100M Ω DC250V
Withstand Voltage : AC250V 1 minute
Contact Resistance : < 50m Ω
Ambient Temper. : -25 °C to 85 °C¡F
Operating Force : 40 ± 15gf.
Return Force : ≥25gf.
Soldering Process: Hand soldering : Use a soldering iron of 30 watts, controlled at 380 °C approximately 3 seconds while applying solder.

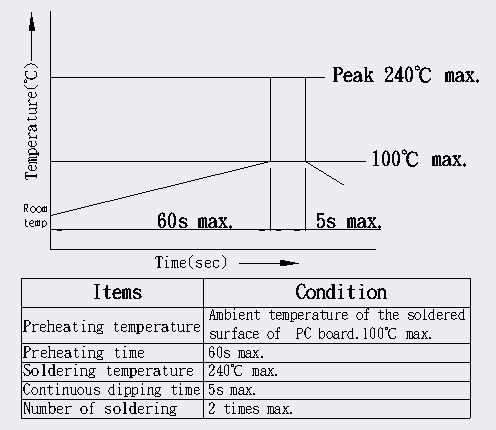

Wave soldering: When applying wave soldering, the peak temperature of the wave Oven should be set to 260 °C max. Condition for soldering (Wave & Non-washable Type) Temperature Profile: (Figure 1)

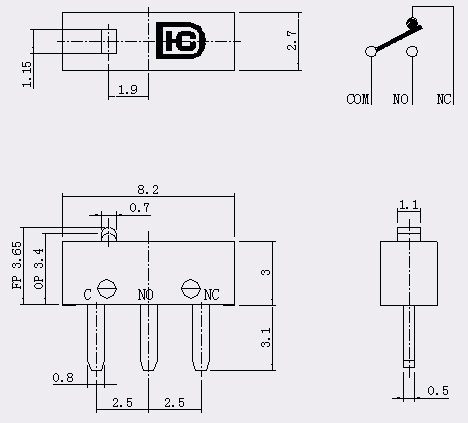

Terminal and Actuator Options:

Packing Explanation:

24,000 PCS for one big box (1,000 PCS for one bag, 4 bags for one small box,6 small boxes for one big box.)
