Micro Switch DS037-00P-60


  • Small dimensions
  • Mechanical life: min. 1x 10 cycles
  • Good feeling.


Switch Lever: Nylon (UL94 V-0)
Switch Cover: Nylon (UL94 V-0)
Color: Black
Switch Base: Nylon (UL94 V-0)
Color: Black
Actuating Button: Nylon (UL94 V-0)
Color: Black
Terminals: Brass (Plating silver)
Contacts: Ag
Spring plate: Be Cu Alloy

Contact Rating: 0.3A @ DC6V
Electrical life: 50,000 cycles
Mechanical life: 100,000 cycles min
Insulation Resistance: > 100M Ω DC100V
Withstand Voltage: AC250V 1 minute
Contact Resistance: < 100m Ω
Ambient Temper.: -25 °C to 85 °C
Operating Force: 10 ~ 30 gf
Soldering Process: Hand soldering: Use a soldering iron of 30 watts,controlled at 380 °C approximately 3 seconds while applying solder.

Wave soldering: When applying wave soldering, the peak temperature of the wave Oven should be set to 260 °C max. Condition for soldering (Wave & Non-washable Type) Temperature Profile:

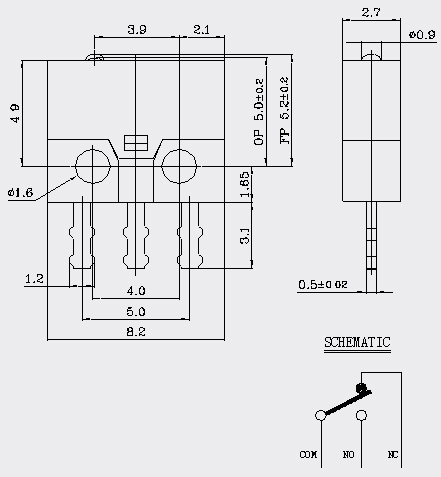

Terminal and Actuator Options:

Packing Explanation:

60,000 PCS for one big box (1,000 PCS for one bag, 10bags for one small carton, 6 small cartons for one big box.)
