Features:
- Small dimensions
- Mechanical life
- Good feeling.
Basic Specification Parameter
Electrical Characteristics |
Rating |
DC12V 100mA |
Contact Resistance |
≤50m Ω (initial) |
Insulation Resistance |
≥100M Ω DC500V |
Withstand voltage |
AC250V 1Minute |
Electrical Life |
150000 Cycles above |
Mechanical Characteristics |
Operating force range |
100gf ± 30gf |
Mechanical Life |
150000 Cycles ( no load ) |
Operating temperature range |
-40 °C + 85 °C |
Ambient humidity used |
≤85%RH |
Solder ability |
230 °C ± 5 °C 3S |
Withstand Soldering temperature |
260 °C ± 5 °C 3S |
Digree of Protection |
GB 4208-93 IP40 |
Materianls
| Part Name |
Material |
Quality |
Remark |
| Butto n |
PA+30%GF |
1 |
Black |
| Spring |
C2680R |
1 |
Silver Plating |
| Contact |
Silver alloy |
3 |
|
| Change Plate |
C5210R |
1 |
Silver Plating |
| Base |
PA+30%GF |
1 |
Black |
| Terminal |
C2680R |
1 |
Silver Plating |
| Cover |
PA+30%GF |
1 |
Black |
| Fixed Rod |
C2680R |
1 |
|
Soldering Process
Hand soldering :
Use a soldering iron of 30 watts, Controlled at 380 °C approximately 3 seconds while solder applying.
Wave soldering:
When applying wave soldering, the peak temperature of the wave oven should be set to 260 °C max. Condition for soldering (wave & Non-washable Type) Temperature Profile
Tems |
Conditions |
Preheating temperature |
Ambient temperature of the soldered surface of PC board.100 °C max. |
Preheating time |
60s max. |
Peak temperature |
260°C max |
Continuous dipping time |
5 sec max |
Number of soldering |
2 time max |
Reflow soldering:
When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250 °C max . Condition for soldering (Reflow & Non-washable Type) Temperature Profile:
Conditions
A |
Temp. rise gradient |
1 - 5°C/sec |
B |
Heating time |
60 - 120sec |
| Heating temperature |
120 - 220°C |
C |
Temp. rise gradient |
1 - 5°C/sec |
D |
Time over 230°C |
90sec |
E |
Peak temperature |
260°C |
| Peak-temp. hold time |
Momentary |
|
Soldering |
1 times |
Note: Temperatures and time for A through E in the table above shall be measured on the top surface of the component.

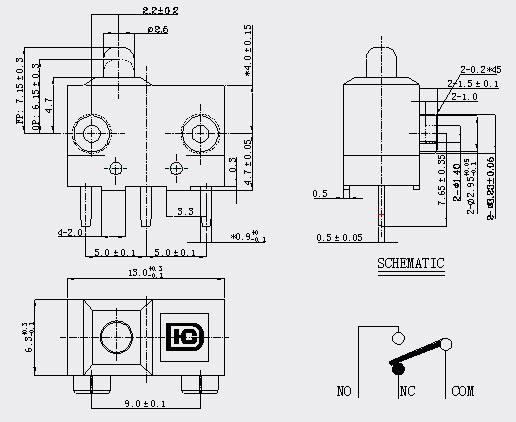

Dimension & Drawing
 |
