- Small dimensions
- Mechanical life: min. 1x 10 cycles
- Good feeling.
Contact Rating: 0.1A @ 48VDC;0.1A@125VAC
Electrical life: 1,000,000 cycles
Mechanical life: 1,000,000 cycles min
Insulation Resistance: > 100M Ω DC250V
Withstand Voltage: AC250V 1 minute
Contact Resistance: < 100m Ω
Ambient Temper.: -25 °C to 70 °C
Soldering Process : Hand soldering: Use a soldering iron of 30 watts,controlled at 380 °C approximately 3 seconds while applying solder.

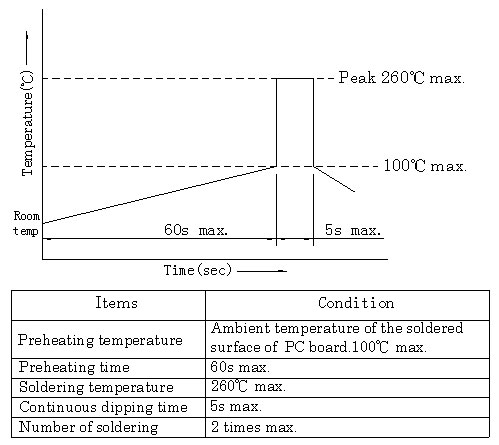

Wave soldering: When applying wave soldering, the peak temperature of the wave Oven should be set to 260 °C max. Condition for soldering (Wave & Non-washable Type) Temperature Profile: (Figure 1)
