FEATURES:

• Aminiaturized detector switch

SPECIFICATION

Mechanical life: 30,000 cycles min
Electrical life: 30,000 cycles min
Contact Rating: 1mA @5VDC
Insulation Resistance: >100MΩ DC100V
Withstand Voltage: AC100V 1 minute
Contact Resistance: <100mΩ
Ambient Humidity: <85%RH
Operating Temper.: -25°C to 70°C
Operating Force: 50gf
Soldering process : Hand Soldering: Use a soldering iron of 30 watts, controlled at 380°C approximately 3 seconds while applying solder.
Wave soldering: When applying wave soldering, the peak temperature of the wave Oven should be set to 260°Cmax. Condition for soldering (Wave & Non-washable Type) Temperature Profile: (Figure 1)

Reflow soldering: When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250°Cmax. Condition for soldering (Reflow & Non-washable Type) Temperature Profile: (Figure 2)

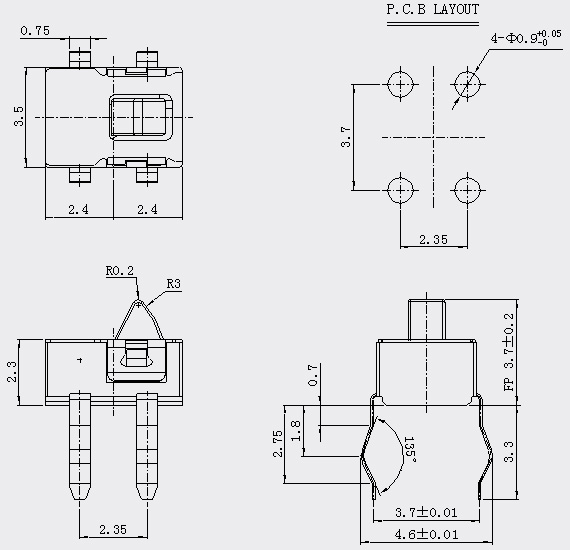

DIMENSION DRAWING

PACKING EXPLANATION :
12,000 PCS for one big box (250 PCS for one bag,2 bags for one small carton,24 small cartons for one big box.
