Encoder Switch EN028-PS

SPECIFICATION

Mechanical life: 200,000 cycles min (each upright and opposite rotate 100,000/cycles)
Electrical life: 200,000 cycles min (each upright and opposite rotate 100,000/cycles)
Contact Rating: 1 mA @10 VDC
Insulation Resistance: > 50M Ω DC50V
Withstand Voltage: AC50V 1 minute
Contact Resistance: < 10 Ω
Ambient Humidity: < 85%RH
Operating Temper.: -25 °C to 65 °C
Operating Force: 20gf, 25gf, 30gf, 40gf, 50gf
Soldering process: Hand Soldering: Use a soldering iron of 30 watts, controlled at 380 °C approximately 3 seconds while applying solder

MATERIALS

Fixed Plate: Stainless steel or Phosphor bronze
Stem: PA66 or POM
Base: PBT or PA66
Spring Plate: Phosphor bronze or Stainless steel
Case: Spcc or POM
Erminals: Brass

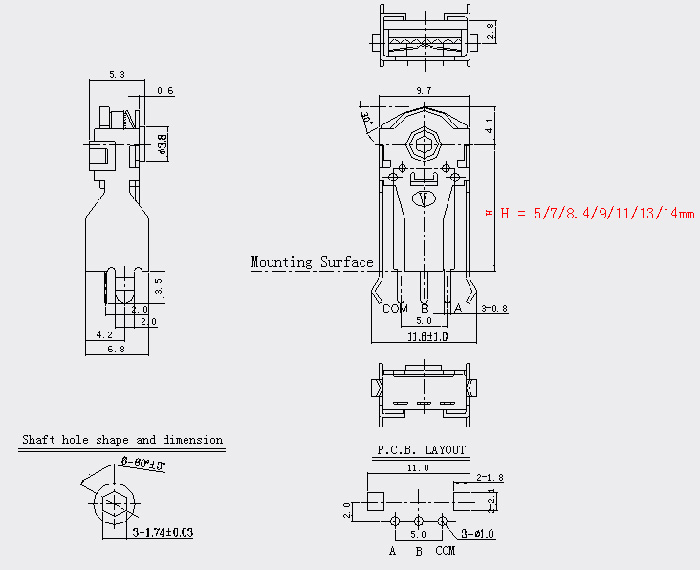

DIMENSION DRAWING

PACKING EXPLANATION :

Mainland : 10000pcs for one big box (250pcs for one bag ,two bags for one carton,20 cartons for one big box.)
Hong Kong: 15000pcs for one big box (250pcs for one bag ,two bags for one carton,30 cartons for one big box.)
