Encoder Switch EN028M-45P-20

SPECIFICATION

Mechanical life: 300,000 cycles min
(each upright and opposite rotate 150,000/cycles)
Electrical life: 300,000 cycles min
(each upright and opposite rotate 150,000/cycles)
Contact Rating: 1 mA @10 VDC
Insulation Resistance: > 50M Ω DC50V
Withstand Voltage: AC50V 1 minute
Contact Resistance: < 10 Ω
Ambient Humidity: < 85%RH
Operating Temper: -10 °C to 65 °C
Operating Force: 20gf; 25gf.
Soldering process: Hand Soldering Use a soldering iron of 30 watts, controlled at 380 °C approximately 3 seconds while applying solder.
Wave soldering: When applying wave soldering, the peak temperature of the wave Oven should be set to 260 °C max. Condition for soldering (Wave & Non-washable Type) Temperature Profile: ( Figure 1)
Reflow soldering: When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250 °C max. Condition for soldering (Reflow & Non-washable Type) Temperature Profile: ( Figure 2)


Wave soldering ( Figure 1)


Rellow soldering ( Figure 2)

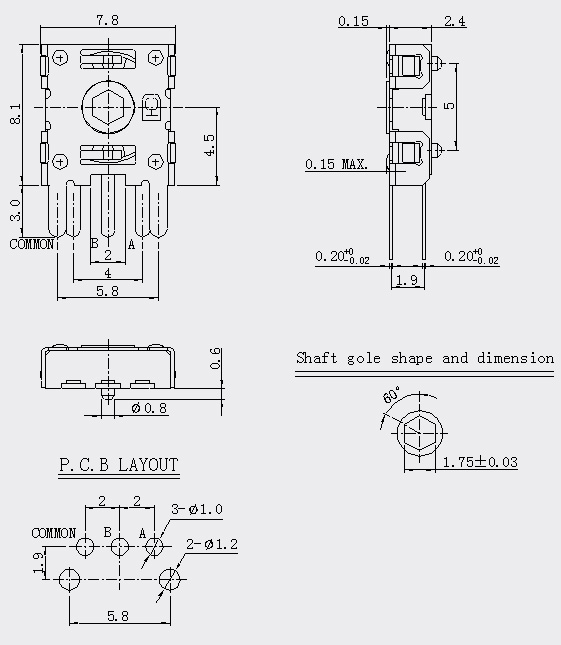

DIMENSION DRAWING

PACKING EXPLANATION :

Mainland: 10000pcs for one big box (250pcs for one bag,two bags for one carton,20 cartons for one big box.)
HongKong: 15000pcs for one big box (250pcs for one bag,two bags for one carton,30 cartons for one big box.)
