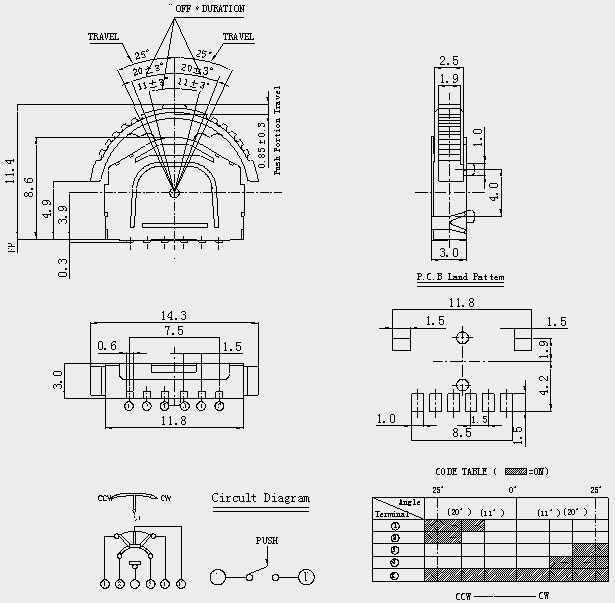

Push Switch EN039-01C1-15
FEATURES:
  • Small dimensions
  • Mechanical life: min.1 x10cycles
  • Good feeling

SPECIFICATION

Contact Rating: 10 mA @ 5VDC
Electrical life: 100,000 cycles
Mechanical life: 100,000 cycles min
Insulation Resistance: > 100M Ω DC100V
Withstand Voltage:AC100V 1 minute
Contact Resistance: < 100m Ω
Ambient Temper. : -25 °C to 85 °C
Operating Force:Lever Portion:70 ± 20gf, Push Portion: 250 ± 60gf
Soldering Process:Hand soldering : Use a soldering iron of 30 watts, controlled at 380 °C approximately 3 seconds while applying solder.
Wave soldering:When applying wave soldering, The plastic using PA6T(HTN), the peak temperature of the wave Oven should be set to 260 °C max. Condition for soldering (Wave & Non-washable Type) Temperature Profile: (Figure 1)
Reflow soldering:When applying reflow soldering, The plastic using PA6T(HTN), the peak temperature of the reflow Oven should be set to 250 °C max. Condition for soldering (Reflow & Non-washable Type) Temperature Profile: (Figure 2)

MATERIALS

Switch Case: SUS301
Switch Base: PA6T (UL94V-0)
Color: Black
Stem: PA6T (UL94 V-0)
Color: Black
Terminals: Brass (Plating silver)
Spring: SUS30 4
Spring Plate: C5210

Terminal and cover Options:

PACKING EXPLANATION :

EN039-01C0-13/15 & EN039-01C1-13/15 series Taping packaging : 800 switches shall be packed in a reel; Ten(10)reels at maximum shall be packed in a package.
