Push Switch EN047-02M1-300

SPECIFICATION

Mechanical life: 100,000 cycles min
Electrical life: 100,000 cycles min
Contact Rating: 50 mA @12 VDC
Insulation Resistance: > 100M Ω DC100V
Withstand Voltage: AC100V 1 minute
Contact Resistance : < 100m Ω
Ambient Humidity: < 85%RH Operating Temper. : -20 °C to 70 °C
Operating Force: 300 ± 50gf
Soldering process: Hand Soldering : Use a soldering iron of 30 watts, controlled at 380 °C approximately 3 seconds while applying solder
Reflow soldering: When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250 °C max. Condition for soldering (Reflow & Non-washable Type) Temperature Profile: (Figure 1)

MATERIALS

Button: HTN or High Temperature NYLONG (UL94 V-0)
Sleeve: HTN or High Temperature NYLONG (UL94 V-0)
Base: HTN
Case: Stainless Steel
Spring plate: Stainless Steel
Terminals: Phosphor Bronze

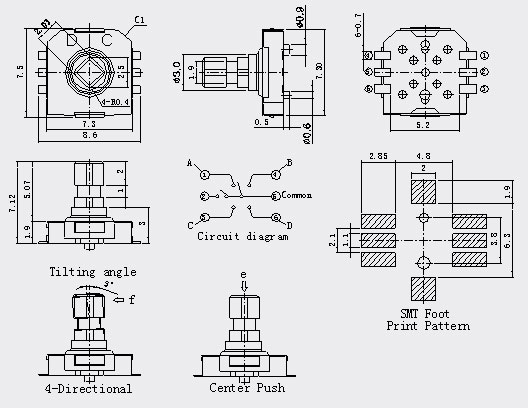

DIMENSION DRAWING :

PACKING EXPLANATION :

Taping packaging :

  • EN047 -01M / 01M 1: 700 switches shall be packed in a reel;Ten(10)reels at maximum shall be packed in a package.

  • EN047 -02M / 02M 1: 450 switches shall be packed in a reel;Ten(10)reels at maximum shall be packed in a package.
