Quick Action Leaf Switch LM1-04N-40

FEATURES:

  • Mechanical life: min. 5 x 105 cycles
  • Good feeling

SPECIFICATION

Contact Rating: 1A @ 30VDC
Electrical life: 40,000 cycles
Mechanical life: 300,000 cycles min
Insulation Resistance : > 100M °C DC125V
Withstand Voltage: AC125V 1 minute
Contact Resistance: < 50m °C
Ambient Temper.: -10 °C to 60 °C
Operating Force: 100 gf
Soldering Process: Hand soldering : Use a soldering iron of 30 watts, controlled at 380 °C approximately 3 seconds while applying solder.

MATERIALS

Switch Stem: POM
Upper Housing: POM
Contact: Ag
Terminal: Brass
Spring Plate: C5210

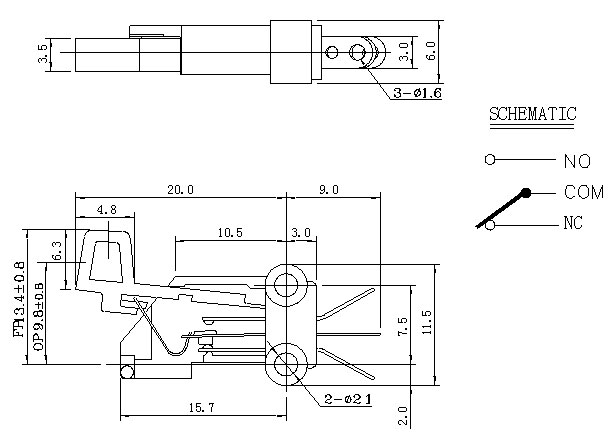

DIMENSION DRAWING

PACKING EXPLANATION :
30000 PCS for one big box (500 PCS for one bag,10bags for one small box,6 small boxes for one big box.)
