Micro Switch MS5


  • Mechanical life: min.100, 000 cycles
  • Good feeling and more actuators and more terminals are applied

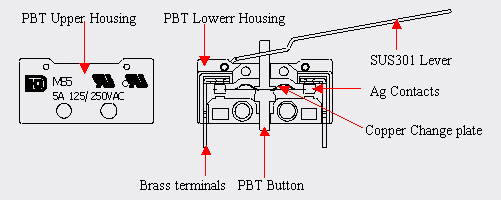

  • Upper Housing: High Temperature PBT (UL94 V-0)
  • Lower Housing: High Temperature PBT (UL94 V-0)
  • Actuating Button: High Temperature PBT (UL94 V-0)
  • Change Plate: copper
  • Terminals: Brass(Plating silver)
  • Contacts: Ag
  • Lever: SUS301
  • Auxiliary Actuator: Stainless Steel


Mechanical life: 100,000 cycles min
Contact Rating: 5Amps @ 125/250 VAC; CUL, UL 10,000 cycles
Insulation Resistance: > 100M Ω DC500V
Withstand Voltage: AC1,000V 1 minute
Contact Resistance: < 50m Ω
Operating Temper.: -25 °C to 80 °C
Operating Force: 5 ± 2 gf
Hand Soldering.: Use a soldering iron of 30 watts, controlled at 380 °C approximately 3 seconds while applying solder

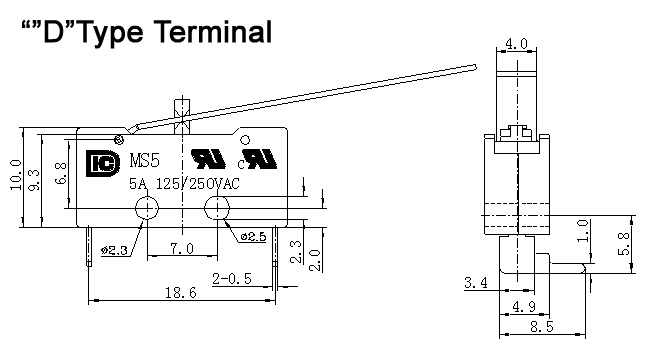

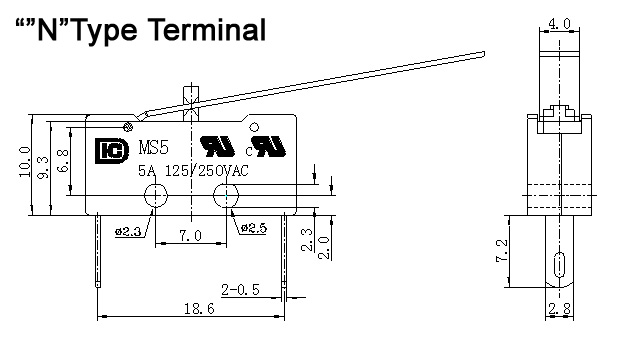

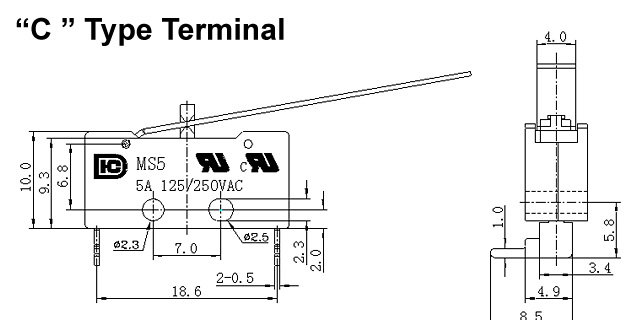

Terminal Options (mm)

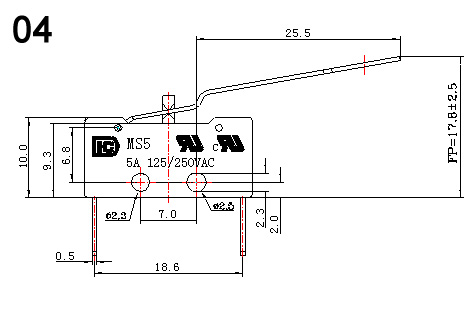

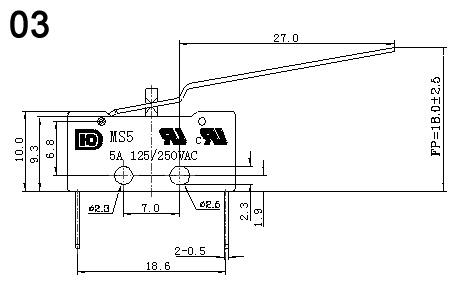

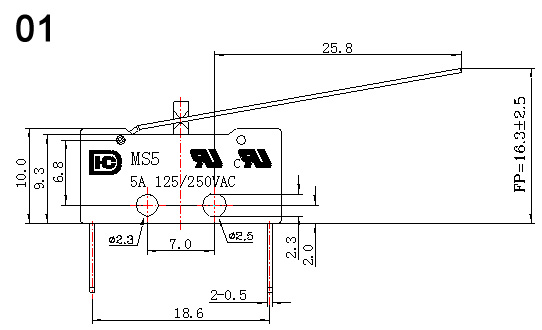

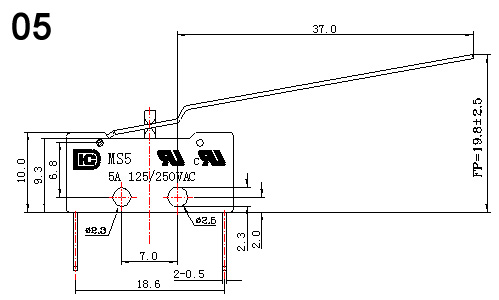

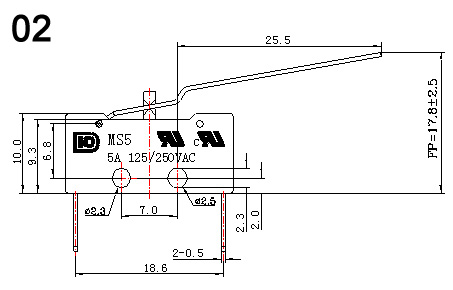

Actuator Specifications (mm)

Packing Explaintion:
3248pcs for one box (232pcs for one trag, 1 trag for one small box, 14 small boxes for one big box)
