Push Switch PS023-02P-45

SPECIFICATION

Mechanical life: 50,000 cycles min
Electrical life: 10,000 cycles min
Contact Rating: 0.1Amps @30 VDC
Insulation Resistance: >100MΩ DC125V
Withstand Voltage: AC125V 1 minute
Contact Resistance: <100mΩ
Ambient Humidity: <85%RH
Operating Temper.: -10°C to 70°C
Operating Force: 50±20gf
Soldering process: Hand Soldering: Use a soldering iron of 30 watts, controlled at 380°C approximately 3 seconds while applying solder

MATERIALS

Case: High Temperature NYLONG (UL94 V-0)
Base: High Temperature NYLONG (UL94 V-0)
Stem: High Temperature NYLONG (UL94 V-0)
Terminals: Brass(Plating silver)
Clip: Phosphor Bronze
Spring: Stainless Steel

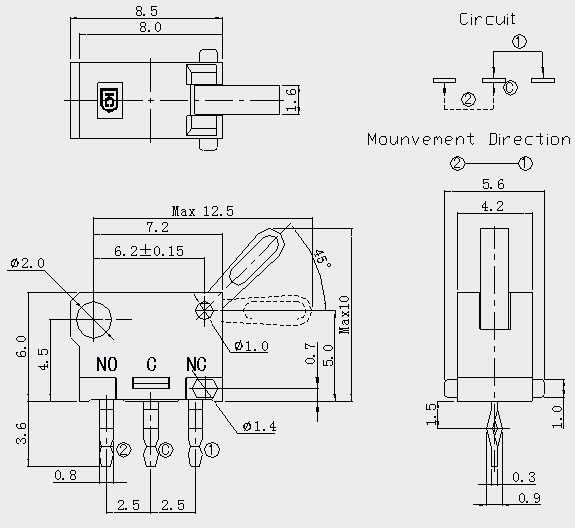

DIMENSION DRAWING (mm)

PACKING EXPLANATION :

24,000 PCS for one big box (1000 PCS for one bag, 4 bags for one small carton, 6small cartons for one big box.)
