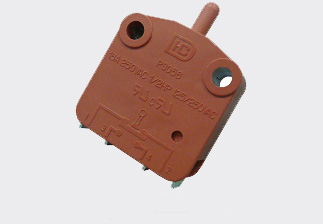

Micro Switch PS056-01N3


  • Mechanical life: min.1 x 10 cycles
  • Good feeling and more actuators


Mechaanical life: 100,000 cycles min
Contact Rating: 16Amps @ 250 VAC; CUL, UL
50,000 cycles; VDE 50,000 cycles
Insulation Resistance: >100MΩ DC250V
Withstand Voltage: AC250V 1 minute ; Contact Resistance: <50mΩ
Operating Temper.: -25°C to140°C
Operating Force: 200±50gf ; 100±50gf.
Hand Soldering.: Use a soldering iron of 30 watts, controlled at 380°C approximately 3 seconds while applying solder

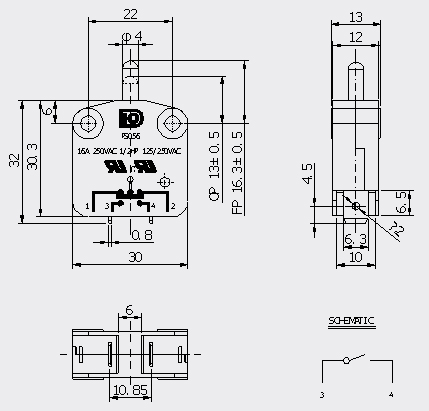

Dimension Drawing(mm)

Packing Explaintion:
1050 PCS for one big box (75 PCS for one case, 14 case for one big box.)
