Power Switch PS168L-P-P

FEATURES:

  • Mechanical life: min. 1 x 105 cycles
  • Good feeling

SPECIFICATION

Contact Rating: 5/80A @ 250VDC Electrical life: 6,000 cycles min Mechanical life: 100,000 cycles Insulation Resistance: > 500M Ω DC500V Withstand Voltage: AC2000V 1 minute Contact Resistance: < 50m Ω Ambient Temper.: -25 °C to 70 °C Operating Force: 500 ± 200 gf Soldering Process: Hand soldering: Use a soldering iron of 30 watts,controlled at 380 °C approximately 3 seconds while applying solder.

MATERIALS

Switch Stem: PBT (UL94 V-0)
Switch Buckle: SPCC
Spring: SWP
Case: SPCC
Base: PBT (UL94 V-0)
Contact: Silver alloy
Terminal: Brass
Change Plate: Brass
Roller: PBT (UL94 V-0)
Fixed rod: SUS304

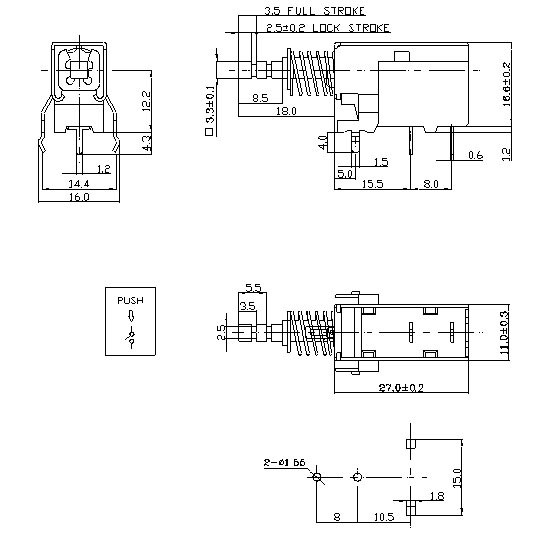

DIMENSION DRAWING

PACKING EXPLANATION :
1800 PCS for one big box (100 PCS for one bag, 3bags for one small box,6 small boxes for one big box.)
