TACT Switch PT042-02MB
FEATURES:
  • SMD TACT switch
  • A miniaturized TACT switch
  • Good feeling

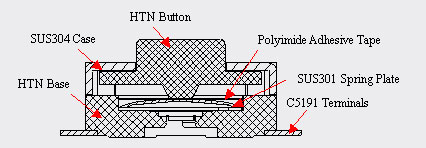

MATERIALS

Switch Button: High Temperature NYLONG(UL94-0)
Color: Black
Switch Case: SUS304
Actuating Base: High Temperature NYLONG(UL94-0)
Color: Black
Terminals: C5191(Plating silver)
Contact Disc: SUS301
Adhesive Tape: Polyimide

SPECIFICATION

Contact Rating: 50 mA @ 12VDC
Electrical life: 100,000 cycles
Mechanical life: 100,000 cycles min
Insulation Resistance: > 100M Ω DC100V
Withstand Voltage: AC100V 1 minute
Contact Resistance: < 100m Ω
Ambient Temper. : -25 °C to 70 °C Operating Force : 80 ± 20 gf; 130 ± 30 gf; 160 ± 30 gf
Soldering Process: Hand soldering: Use a soldering iron of 30 watts,controlled at 380 °C approximately 3 seconds while applying solder.
Reflow soldering:When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250 °C max. Condition for soldering (Reflow & Non-washable Type) Temperature Profile: (Figure 1¡^

TERMINAL AND COVER OPTIONS:

PACKING EXPLANATION :

Taping packaging :
60,000 PCS for one big box(1,000 PCS for one bag, 10bags for one small carton,6 small cartons for one big box.)
Taping packaging: 3000 switches shall be packed in a reel;Ten(5)reels at maximum shall be packed in a package.
