Sensor Switch RM021-01A

FEATURES:

  • A miniaturized slide switch

SPECIFICATION

Mechanical life : 100,000 cycles min
Electrical life : 100,000 cycles min
Contact Rating : 1mA @12 VDC
Insulation Resistance: > 100M Ω DC100V
Withstand Voltage: AC100V 1 minute
Contact Resistance: < 100m Ω
Ambient Humidity: < 85%RH
Operating Temper.: -25 °C to 70 °C
Operating Force: 50gf
Soldering process: Hand Soldering: Use a soldering iron of 30 watts, controlled at 380 °C approximately 3 seconds while applying solder.

MATERIALS

Stem: POM
Case: PBT(UL94 V-O)
Base: PA66 (UL VO)
Terminals: Brass
Spring plate: Phosphor Bronze

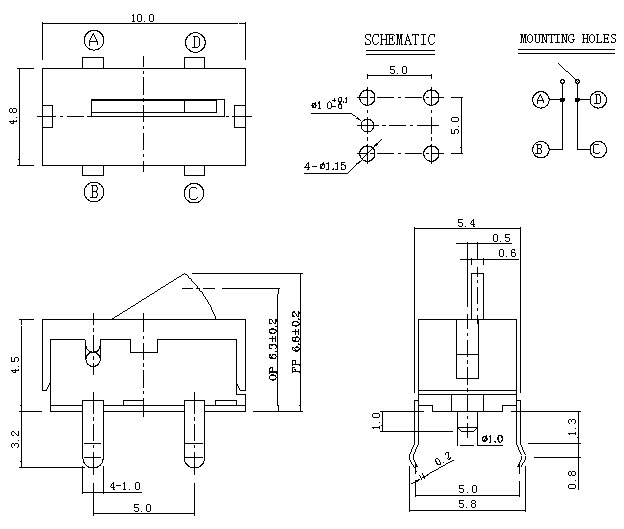

DIMENSION DRAWING

PACKING EXPLANATION :
12,000 PCS for one big box (250 PCS for one bag,2 bags for one small carton,24 small cartons for one big box.)
