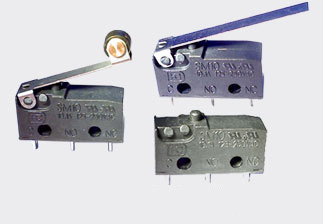

Micro Switch SM10-04N

Features:

  • Mechanical life : min. 1 x 10cycles
  • Good feeling and more actuators and more terminals are applied

Specification

Mechanical life: 1,000,000 cycles min
Contact Rating: 10.1Amps@125/250 VAC; CUL, UL 6,000 cycles
Insulation Resistance: >100MΩ DC500V
Withstand Voltage: AC 1,000V 1 minute
Contact Resistance: <50mΩ
Operating Temper.: -25°C to 75°C
Operating Force: See Chart
Hand Soldering.: Use a soldering iron of 30 watts, controlled at 380°C approximately 3 seconds while applying solder

Actuator and Operating Force Chart

ACTUATOR
OPERATING FORCE(gf)
FP(mm)
OP(mm)
04
70±20
15.0±0.8
12.0±0.8

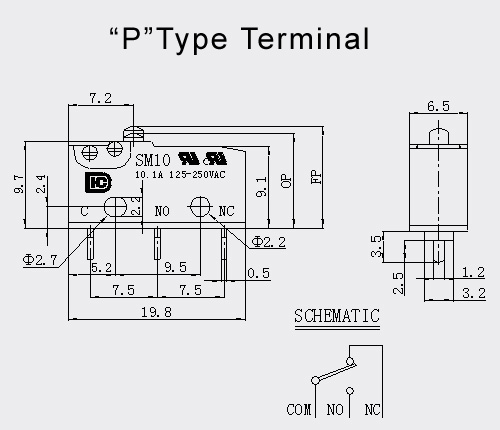

Terminal Options mm( Inches)



Packing Explanation:

Port and exist differ package:
1. 100 PCS for one case, 78 cases for one box
2. HK:100 PCS for one case, 78 cases for one box
3. TAIWAN: 100PCS FOR ONE CASE,76 CASES FOR ONE BOX
4. 30gf MAX of "OF" is packaged 15 cases for one box
5. Longer lever: such as SM-07, SM-28 etc. type packaged 80 PCS for one case.
