Slide Switch SS008B-02P-13-Y
FEATURES:
  • A miniaturized push button switch
  • The double sliding contact structures high reliability

SPECIFICATION

Mechanical life: 30,000 cycles min
Electrical life: 10,000 cycles min
Contact Rating: 0.3Amps @30 VDC
Insulation Resistance: >100M£[ DC250V
Withstand Voltage: AC250 1 minute
Contact Resistance: <50m£[
Ambient Humidity: <85%RH
Operating Temper.: -25°C to 70°C
Operating Force: 200±150gf
Soldering process: Hand Soldering: Use a soldering iron of 30 watts, controlled at 380°C approximately 3 seconds while applying solder.

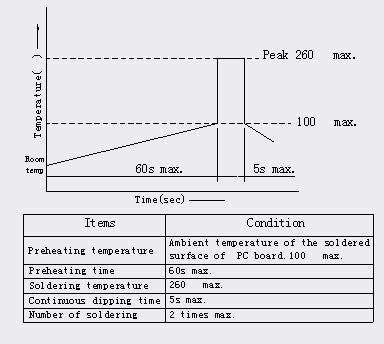

Wave soldering: When applying wave soldering, the plastic using PA6T(HTN), the peak temperature of the wave Oven should be set to 260°C max. Condition for soldering (Wave & Non-washable Type)Temperature Profile:

MATERIALS

Case: Spcc
Base: Bakelite
Stem: NILONG
Terminals: Brass(Plating silver)
Spring plate: C5210
Clip : C5210

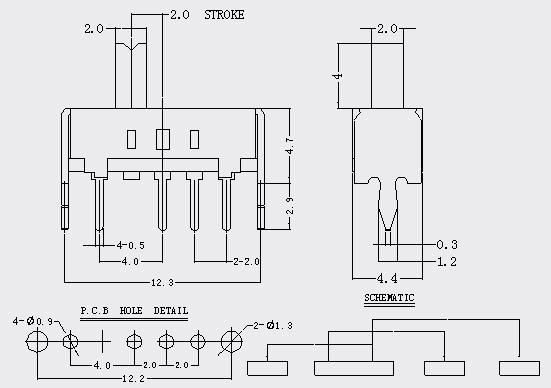

DIMENSION DRAWING

PACKING EXPLANATION :

30,000 PCS for one big box (1,000 PCS for one bag, 5 bags for one small carton,6small cartons for one big box.)
