Slide Switch SS009-01P-22
FEATURES:
  • A Slide switch
  • The double sliding contact structures high reliability

SPECIFICATION

Mechanical life: 30,000 cycles min
Electrical life: 10,000 cycles min
Contact Rating: 0.3Amps @30 VDC
Insulation Resistance: >100M£[ DC250V
Withstand Voltage: AC250V 1 minute
Contact Resistance: <50mΩ
Ambient Humidity: <85%RH
Operating Temper.: -25°C to 70°C
Operating Force: 200±150gf
Soldering process: Hand Soldering: Use a soldering iron of 30 watts, controlled at 380°C approximately 3 seconds while applying solder

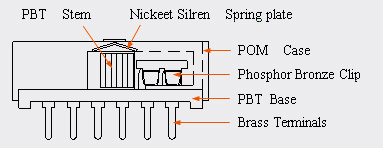

MATERIALS

Case: POM
Base: PBT
Stem: PBT
Terminals: Brass
Spring plate: Nickeet Silren
Clip: Phosphor Bronze

DIMENSION DRAWING

PACKING EXPLANATION :

18,000 PCS for one big box (500 PCS for one bag, 6 bags for one small carton,6small cartons for one big box.)
