Slide Switch SS031-P-23
FEATURES:
  • A Slide switch
  • The double sliding contact structures high reliability

MATERIALS

Stem: High Temperature NYLONG (UL94 V-0)
Case: Stainless Steel
Base: High Temperature NYLONG (UL94 V-0)
Terminals: Brass
Spring plate: Phosphor Bronze

SPECIFICATION

Mechanical life: 10,000 cycles min
Electrical life: 10,000 cycles min
Contact Rating: 0.3Amps @6 VDC
Insulation Resistance: > 100M Ω DC250V
Withstand Voltage: AC250V 1 minute
Contact Resistance: < 70m Ω
Ambient Humidity: < 85%RH
Operating Temper.: -25 °C to 70 °C
Operating Force: 250 ± 150gf
Soldering Process: Hand soldering: Use a soldering iron of 30 watts, controlled at 380 °C approximately 3 seconds while applying solder.
Wave soldering: When applying wave soldering, The plastic using PA6T(HTN), the peak temperature of the wave Oven should be set to 260 °C max. Condition for soldering (Wave & Non-washable Type) Temperature Profile: (Figure 1)
Reflow soldering: When applying reflow soldering, The plastic using PA6T(HTN), the peak temperature of the reflow Oven should be set to 250 °C max. Condition for soldering (Reflow & Non-washable Type) Temperature Profile: (Figure 2)


Wave soldering (Figure 1)


Rellow soldering (Figure 2)

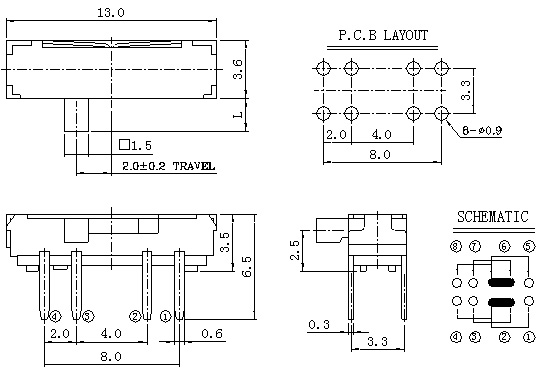

TERMILAL OPTIONS

PACKING EXPLANATION :

1. 24,000 PCS for one big box(500 PCS for one bag, 8 bags for one small carton,6small cartons for one big box.)
2. SS031-01M-22: 1,200 switches shall be packed in a reel;Ten(10)reels at maximum shall be packed in a package.
