Slide Switch SS031EB-01M-14

MATERIALS

Case: Stainless Steel
Base: High Temperature NYLONG (UL94 V-0)
Stem: High Temperature NYLONG (UL94 V-0)
Terminals: Brass
Spring plate: Phosphor Bronze
Spring : Stainless Steel

SPECIFICATION

Mechanical life: 10,000 cycles min Electrical life: 10,000 cycles min Contact Rating: 0.3Amps @4 VDC Insulation Resistance : > 100M Ω DC100V Withstand Voltage : AC100V 1 minute Contact Resistance: < 70m Ω Ambient Humidity: < 85%RH Operating Temper.: -25 °C to 70 °C Soldering process: Hand Soldering: Use a soldering iron of 30 watts, controlled at 380 °C approximately 3 seconds while applying solder

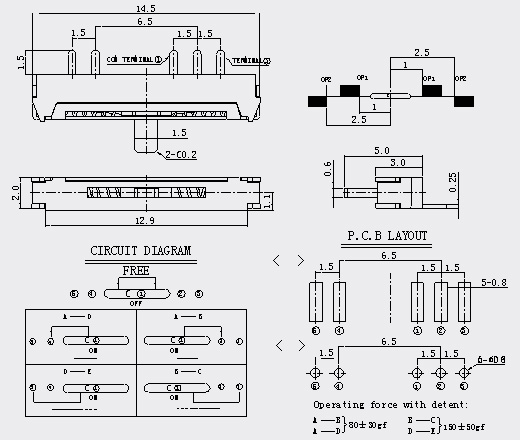

DIMENSION DRAWING

PACKING EXPLANATION :

24,000 PCS for one big box (500 PCS for one bag, 8 bags for one small carton,6small cartons for one big box.)
