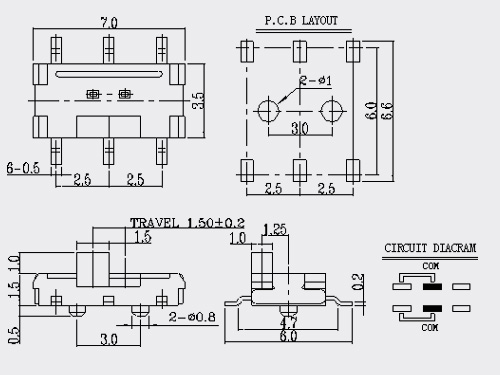

Slide Switch SS038B-03M-22


Stem: High Temperature NYLONG (UL94 V-0)
Case: Nickeet Silren or Stainless Steel
Base: High Temperature NYLONG (UL94 V-0)
Terminals: Phosphor Bronze or Brass
Spring plate: Phosphor Bronze
Fixed Rod: Phosphor Bronze or Stainless Steel


Mechanical life: 10,000 cycles min
Electrical life: 10,000 cycles min
Contact Rating: 0.3Amps @4 VDC
Insulation Resistance: >100MΩ DC100V
Withstand Voltage: AC100V 1 minute
Contact Resistance: <100mΩ
Ambient Humidity: <85%RH
Operating Temper.: -25°C to 80°C
Operating Force: 200±100gf
Soldering process: Hand Soldering: Use a soldering iron of 30 watts, controlled at 380°C approximately 3 seconds while applying solder
Reflow soldering: When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250°Cmax. Condition for soldering (Reflow & Non-washable Type) Temperature Profile:



60,000 PCS for one big box (1,000 PCS for one bag, 10 bags for one small carton,6small cartons for one big box.)
