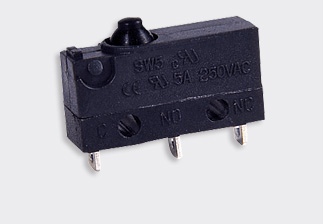

Micro Switch SW5-01N

Features:

  • Protection against ingress of dust ≤ Φ 1.0mm ( I P5X)
  • Protection against ingress of water ( I PX1)
  • Good feeling and more actuators and more terminals are applied

Materials

Upper Housing: Nylong66 (UL94 V-0)
Base: Nylong66 (UL94 V-0)
Actuating Button: High Temperature PBT (UL94 V-0)
Cap: Rubber (UL94 V-0)
Chang Plate: Bronze
NC, NO, COM Terminals: Brass(Plating silver)
Contacts: Silver Alloy or plating Gold
Spring: SUS304
Auxiliary Actuator: Stainless Steel

Specification

Mechanical life: 100,000 cycles min
Contact Rating: 5Amps @ 250 VAC; CUL, UL 10,000 cycles
Insulation Resistance: >100MΩ DC500V
Withstand Voltage: AC1,000V 1 minute
Contact Resistance: <100mΩ
Operating Temper.: -25°C to 85°C
Operating Force: See Chart
Hand Soldering.: Use a soldering iron of 30 watts, controlled at 380°C approximately 3 seconds while applying solder

Actuator and Operating Force Chart

ACTUATOR
OPERATING FORCE(gf)
FP(mm)
OP(mm)
01
45±20
50±20
55±25
60±25
100±40

Terminal Options mm( Inches)

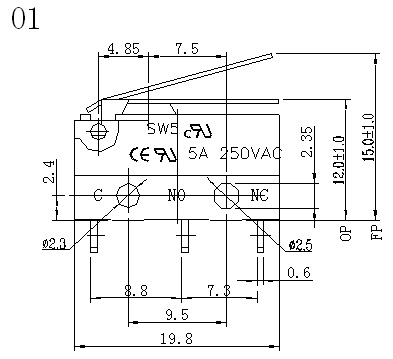

Actuator Specifications (mm)

Packing Explanation:

Hacing different transport and exist differ package:

1. 90 PCS for one case, 78 cases for one box
2. HK: 90 PCS for one case, 78 cases for one box
3. TAIWAN: 90 PCS for one case, 76 cases for one box
