TACT Switch TS016D-01M
FEATURES:

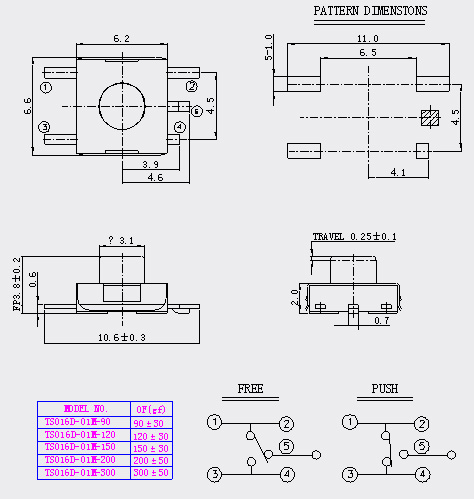

  • Small dimensions (6.2 x 6.6 x 3.8mm)
  • Mechanical life: min. 5 x 10 4 cycles
  • Good feeling

SPECIFICATION

Contact Rating: 50 mA @ 12VDC
Electrical life: 50,000 cycles
Mechanical life: 50,000 cycles min
Insulation Resistance: > 100M Ω DC100V
Withstand Voltage: AC250V 1 minute
Contact Resistance: < 100m Ω
Ambient Temper. : -25 °C to 70 °C
Operating Force: 90 ± 30 gf ; 120 ± 30 gf ; 150 ± 30 gf ; 200 ± 50 gf ; 300 ± 50 gf
Soldering Process: Hand soldering : Use a soldering iron of 30 watts ,controlled at 380 °C approximately 3 seconds while applying solder.

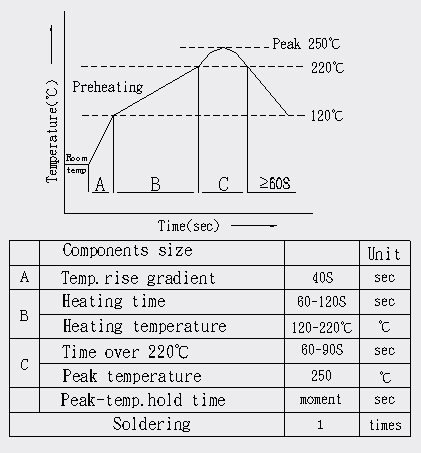

Reflow soldering: When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250 °C max. Condition for soldering (Reflow & Non-washable Type) Temperature Profile: (Figure 1)


Rellow soldering (Figure 1)

TERMINAL AND COVER OPTIONS

PACKING EXPLANATION :

24,000 PCS for one big box(1,000 PCS for one bag, 4bags for one small carton,6 small cartons for one big box.)
