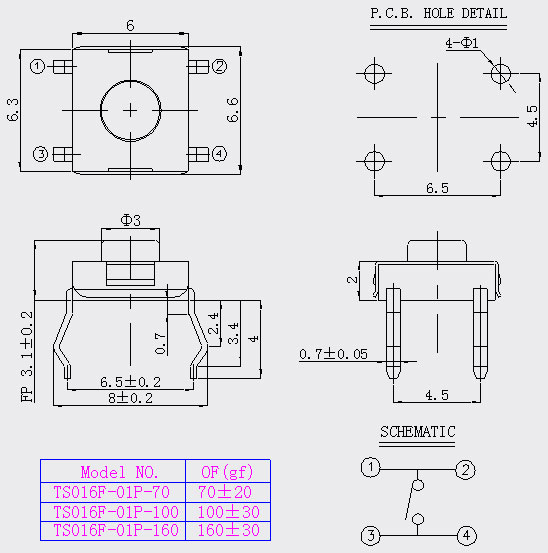

TACT Switch TS016F-01P
FEATURES:
  • Small dimensions
  • Mechanical life: min. 1 x 10cycles
  • Good feeling

MATERIALS

Switch cover: Nickeet silren or sus301 or spcc
Switch Base: PA6T (UL94 V-0)
Color : Black
Actuating Button: PA6T(UL94 V-0)
Color : Black
Terminals: Brass(Plating silver)
Contact Disc: SUS301

SPECIFICATION

Contact Rating: 50 mA@12VDC
Electrical life: 1,000,000 cycles
Mechanical life: 1,000,000 cycles min
Insulation Resistance: > 100M Ω DC250V
Withstand Voltage: AC250V 1 minute
Contact Resistance: < 100m Ω
Ambient Temper.: -25 °C to 70 °C
Operating Force: 70 ± 20 gf ; 100 ± 30 gf ; 160 ± 30 gf
Soldering Process: Hand soldering : Use a soldering iron of 30 watts,controlled at 380 °C approximately 3 seconds while applying solder.
Wave soldering: When applying wave soldering, the peak temperature of the wave Oven should be set to 260 °C max. Condition for soldering (Wave & Non-washable Type) Temperature Profile: (Figure 1)
Reflow soldering: When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250 °C max. Condition for soldering (Reflow & Non-washable Type) Temperature Profile: (Figure 2)


Wave soldering (Figure 1)


Rellow soldering (Figure 2)

TERMINAL AND COVER OPTIONS:

PACKING EXPLANATION :

Taping packaging :
24,000 PCS for one big box(1,000 PCS for one bag, 4bags for one small carton, 6 small cartons for one big box.)
Taping packaging: 2000 switches shall be packed in a reel; Ten(10)reels at maximum shall be packed in a package.
