TACT Switch TS016L-01M1G
FEATURES:
  • Small dimensions(6.2x6.2x2.5mm)
  • Mechanical life: min. 1 x 10cycles
  • Good feeling

SPECIFICATION

Contact Rating: 50 mA @ 12VDC
Electrical life: 1,000,000 cycles
Mechanical life: 1,000,000 cycles min
Insulation Resistance: >100MΩ DC100V
Withstand Voltage: AC250V 1 minute
Contact Resistance: <100mΩ
Ambient Temper.: -25°C to 70°C
Operating Force: 60±15 gf; 100±30 gf; 160±30 gf
If the operating force is 260±50 gf, the life: 300,000 cycles
Soldering Process: Hand soldering: Use a soldering iron of 30 watts,controlled at 380°C approximately 3 seconds while applying solder.
Wave soldering: When applying wave soldering, the peak temperature of the wave Oven should be set to 260°Cmax. Condition for soldering (Wave & Non-washable Type) Temperature Profile:(Figure 1)
Reflow soldering: When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250°Cmax. Condition for soldering (Reflow & Non-washable Type) Temperature Profile:(Figure 2)

MATERIALS

Switch cover: Nickeet silren or sus301
Switch Base: PA6T (UL94 V-0)
Color: Black
Actuating Button: PA6T(UL94 V-0)
Color: Black
Terminals: Brass(Plating silver)
Contact Disc: SUS301

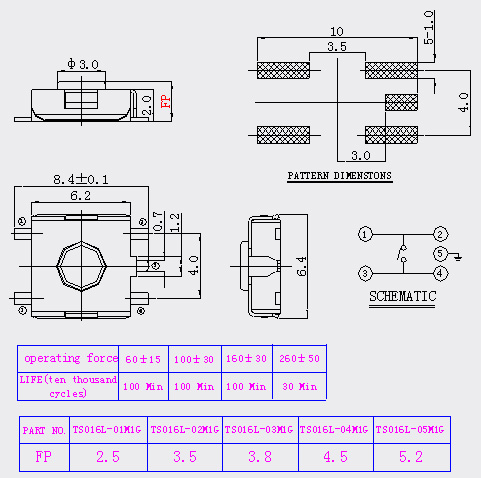

TERMINAL AND COVER OPTIONS:

PACKING EXPLANATION :

Taping packaging :
24,000 PCS for one big box(1,000 PCS for one bag, 4bags for one small carton,6 small cartons for one big box.)
Taping packaging : 2000 switches shall be packed in a reel;Ten(10)reels at maximum shall be packed in a package.
