TACT Switch TS018-02MB
FEATURES:
  • Small dimensions (6.0x3.8mm)
  • Mechanical life: min. 5 x 10 4 cycles
  • Good feeling

SPECIFICATION

Contact Rating: 50 mA @ 12VDC
Electrical life: 50,000 cycles
Mechanical life: 50,000 cycles min
Insulation Resistance: >100MΩ DC250V
Withstand Voltage: AC250V 1 minute
Contact Resistance: <100mΩ
Ambient Temper.: -25°C to 70°C
Operating Force: 130±30 gf; 160±30 gf; 180±40 gf; 260±50 gf
If the operating force is 160±30 gf; 180±40 gf, the life : 60, 000 cycles
Soldering Process: Hand soldering: Use a soldering iron of 30 watts,controlled at 380°C approximately 3 seconds while applying solder.

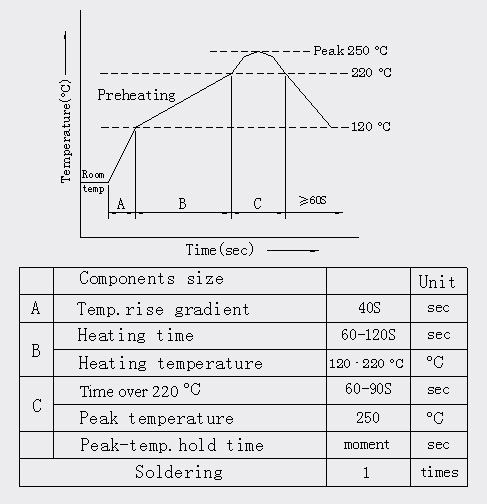

Reflow soldering: When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250°Cmax. Condition for soldering (Reflow & Non-washable Type) Temperature Profile:(Figure 1)

MATERIALS


Rellow soldering ( Figure 1 )

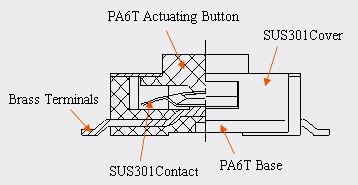

Switch cover: SUS301
Switch Base: PA6T (UL94 V-0)
Color: Black
Actuating Button: PA6T(UL94 V-0)
Color: Black
Terminals: Brass(Plating silver)
Contact Disc: SUS301

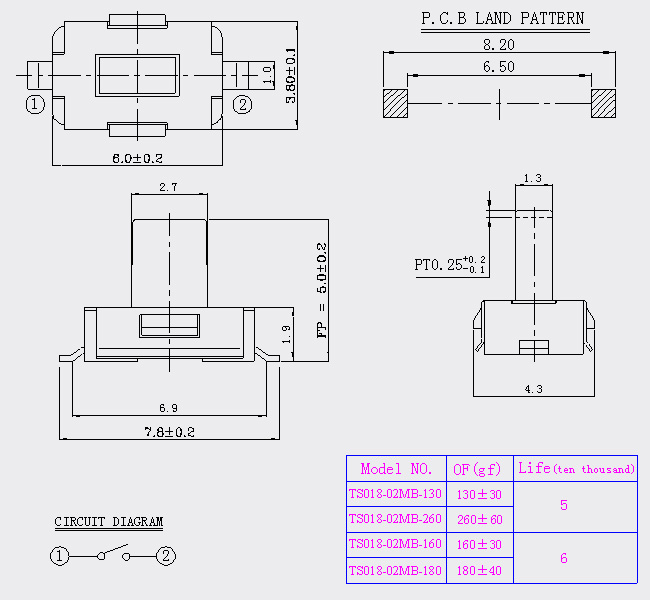

DIMENSION DRAWING

PACKING EXPLANATION :

60,000 PCS for one big box(1,000 PCS for one bag, 10bags for one small carton,6 small cartons for one big box.)
