- Small dimensions
- Mechanical life: min. 3 x 10 5 cycles
- Good feeling
Contact Rating: 50 mA @12VDC
Electrical life: see the chart
Mechanical life : see the chart
Insulation Resistance: >100MΩ DC500V
Withstand Voltage: AC250V 1 minute
Contact Resistance: <100mΩ
Ambient Temper.: -20°C to 70°C
Operating Force: 110±30 gf;180±50 gf;280±50 gf.
Soldering Process : Hand soldering: Use a soldering iron of 30 watts,controlled at 380°C approximately 3 seconds while applying solder.

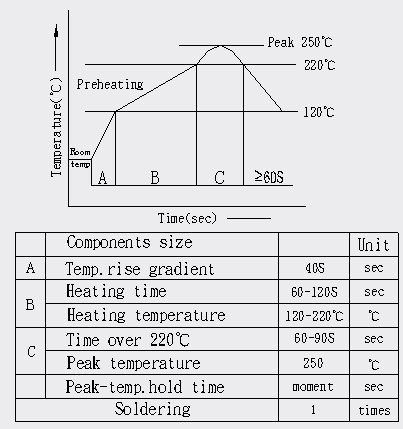

Reflow soldering: When applying reflow soldering, The plastic using PA6T(HTN), the peak temperature of the reflow Oven should be set to 250°Cmax. Condition for soldering (Reflow & Non-washable Type) Temperature Profile: (Figure 1)
Rellow soldering (Figure 1)

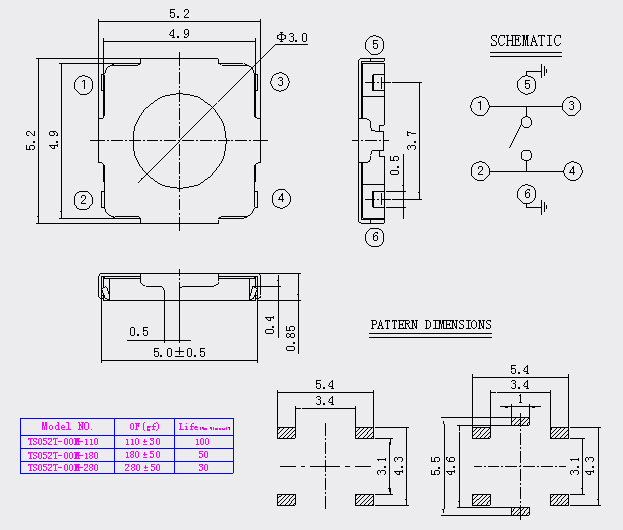

TERMINAL AND COVER OPTIONS
PACKING EXPLANATION :
3000 switches shall be packed in a reel;Ten(10)reels at maximum shall be packed in a package.
2400 switches shall be packed in a reel;Ten(10)reels at maximum shall be packed in a package.
