TACT Switch TSE2-01MB
FEATURES:
  • Small dimensions (6.0x6.0)
  • Mechanical life: min. 1 x 10 6 cycles
  • Good feeling

SPECIFICATION

Contact Rating: 50 mA @ 12VDC
Contact Rating:50 mA @ 12VDC
Electrical life : 1,000,000 cycles
Mechanical life : 1,000,000 cycles min
Position Travel : 0.25±0.1
Insulation Resistance: >100MΩ DC250V
Withstand Voltage: AC250V 1 minute
Contact Resistance: <100mΩ
Ambient Temper.: -25°C to70°C
Operating Force: 80±20 gf;120±30 gf;180±50 gf
Soldering Process : Hand soldering : Use a soldering iron of 30 watts,controlled at 380°C approximately 3 seconds while applying solder.
Wave soldering: When applying wave soldering, the peak temperature of the wave Oven should be set to 260°Cmax. Condition for soldering (Wave & Non-washable Type) Temperature Profile: (Figure 1)
Reflow soldering: When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250°Cmax. Condition for soldering (Reflow & Non-washable Type) Temperature Profile: (Figure 2)


Wave soldering (Figure 1)

Rellow soldering (Figure 2)

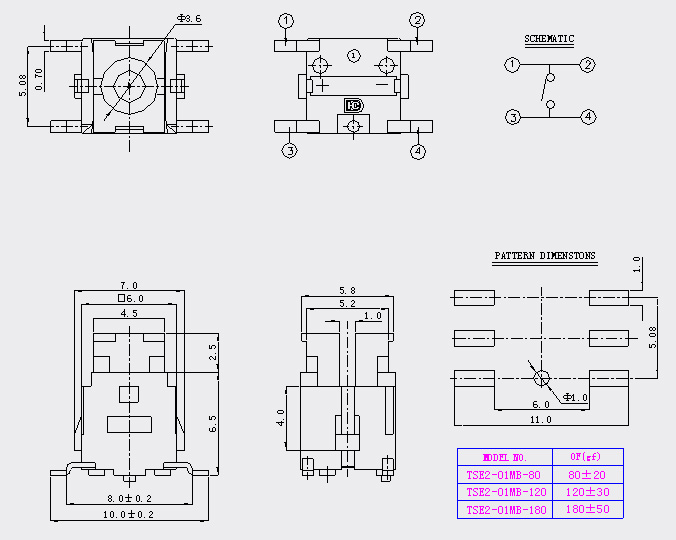

TERMINAL AND COVER OPTIONS

PACKING EXPLANATION :

60,000 PCS for one big box(1,000 PCS for one bag, 10bags for one small carton,6 small cartons for one big box.)
Canal packaging : 80 switches shall be packed in a strip ; Ten(10) strips at maximum shall be packed in a bag.
