TACT Switch TSL-02MS
FEATURES:
  • Small dimensions
  • Mechanical life”Gmin. 1 x 10 6 cycles
  • Good feeling

SPECIFICATION

Contact Rating: 50 mA @ 12VDC
Contact Rating: 50 mA @ 12VDC
Electrical life: 1,000,000 cycles
Mechanical life: 1,000,000 cycles min
Position Travel: 0.25+0.2/-0.1
Insulation Resistance: >100MΩ DC100V
Withstand Voltage: AC250V 1 minute
Contact Resistance: <100mΩ
Ambient Temper.: -25°C to 70°C
Operating Force: 70±15 gf; 100±30 gf; 160±30 gf
Soldering Process: Hand soldering: Use a soldering iron of 30 watts,controlled at 380°C approximately 3 seconds while applying solder.
Wave soldering: When applying wave soldering, the peak temperature of the wave Oven should be set to 260°Cmax. Condition for soldering (Wave & Non-washable Type) Temperature Profile: (Figure 1)
Reflow soldering: When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250°Cmax. Condition for soldering (Reflow & Non-washable Type) Temperature Profile: (Figure 2)


Wave soldering (Figure 1)

Reflow soldering (Figure 2)

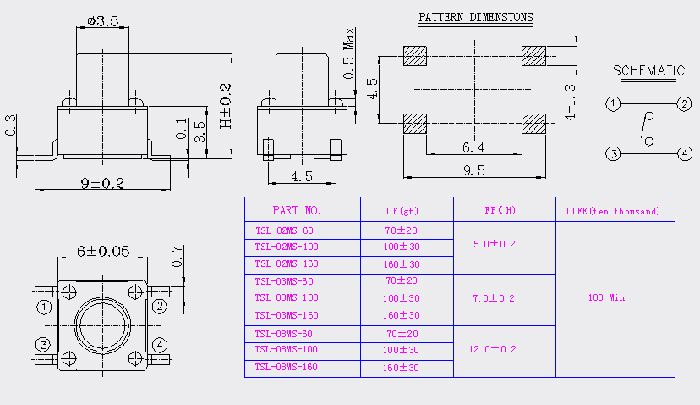

TERMINAL AND COVER OPTIONS

PACKING EXPLANATION :

60,000 PCS for one big box(1,000 PCS for one bag,10 bags for one small box,6 small boxes for one big box.)
Taping packaging :1000 switches shall be packed in a reel;Ten(10)reels at maximum shall be packed in a package.
