Micro Switch VM5-03N

Features:

  • Mechanical life: min.1 x 10 cycles
  • Good feeling and more actuators and more terminals are applied

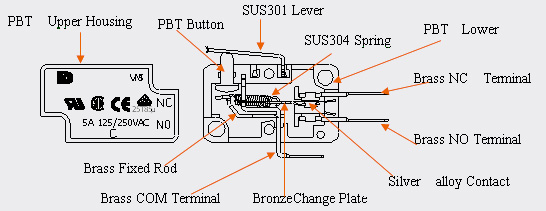

Materials

Upper Housing: High Temperature PBT (UL94 V-0)
Lower Housing: High Temperature PBT (UL94 V-0)
Actuating Button: High Temperature PBT (UL94 V-0)
Fixed Rod: Brass
Chang Plate: Bronze
NC, NO, COM Terminals: Brass(Plating silver)
Contacts: Silver Alloy or plating Gold
Spring: US304
Auxiliary Actuator: Stainless Stee

Specification

Mechanical life: 1,000,000 cycles min
Contact Rating: 5Amps @ 125/250 VAC; CUL, UL 10,000 cycles; VDE 10,000 cycles
3 Amps @ 125 /250VAC ; CUL,UL 10,000 cycles; VDE10,000 cycles
Insulation Resistance: >100MΩ DC500V
Withstand Voltage: AC1,000V 1 minute
Contact Resistance: <100mΩ
Operating Temper.: -25°C to 85°C
Operating Force: See Chart
Hand Soldering.: Use a soldering iron of 30 watts, controlled at 380óJ approximately 3 seconds while applying solder

Actuator and Operating Force Chart

ACTUATOR
OPERATING FORCE (gf)
FP(mm)
OP(mm)
03
12±5
25±10
30±10
40±15
50±25
60±25
21.95±2.0
18.05±2.0

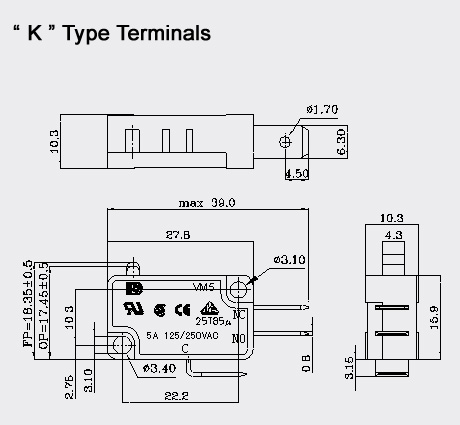

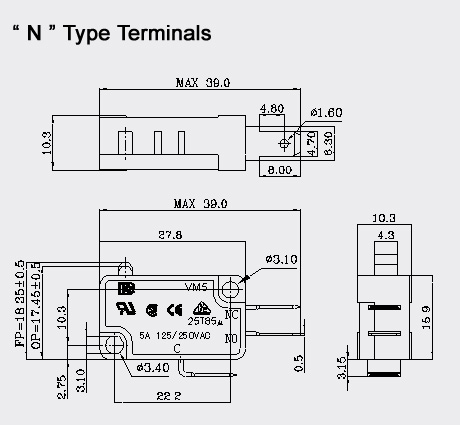

Terminal Options mm (Inches)



Packing Explanation:

Commonly, 100pcs for one case and 30 cases for one box. (1. 15gf max of "OF" is packaged 100pcs for one case, 15 cases for one box. 2. Longer lever: Such as the VM-03 type is packaged 80pcs for one case , 30 cases for one box.)
